The Porsche Taycan arrives from the factory with a Bose sound system — and while it’s not bad for a stock setup, it’s built around proprietary processing and a dedicated Bose amplifier that limits what you can do with it. The brief here was clear: replace the amplifier side entirely, keep the factory head unit and speaker locations, and build a system that does justice to the car.

The key to doing this properly is the MoBridge DA-G2 MOST150 converter. The Taycan runs a MOST150 optical bus — a fully digital, high-bandwidth network used by Porsche and Audi across their premium range. The MoBridge taps directly into this bus and extracts a clean, unprocessed digital signal before it reaches the Bose amp. That means no speaker-level conversion, no signal reconstruction — the DSP gets a clean digital feed from the start, and no AISA correction was needed during tuning.

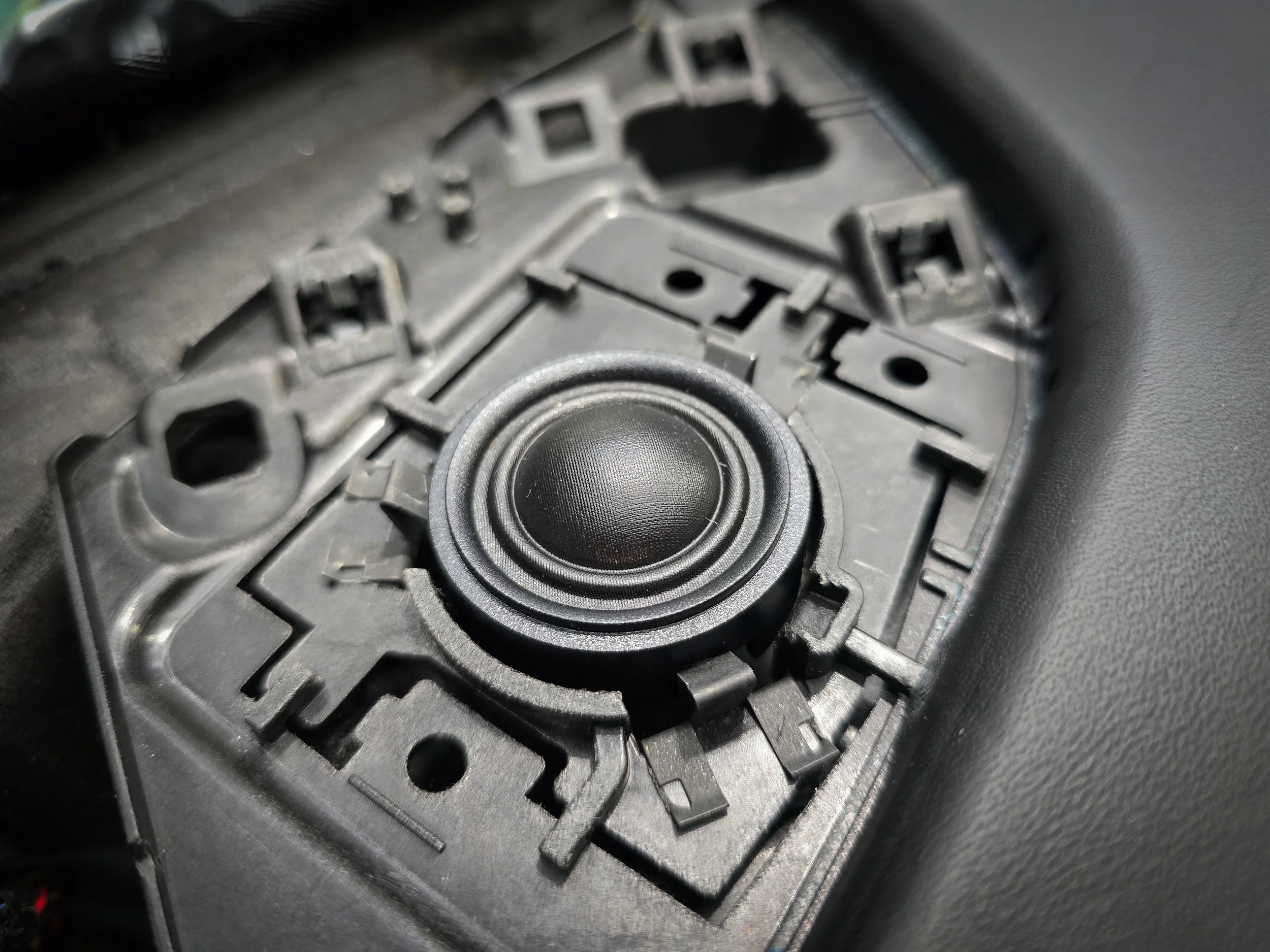

The front stage was rebuilt with Helix Ci7 component speakers — a 3-way active setup running tweeter, midrange, and woofer on independent DSP channels through the Helix V Twelve DSP MK2. Twelve channels of amplification gives full control over every important driver in the car: time alignment per channel, independent crossover slopes, and precise EQ without compromise. The factory OEM subwoofer was retained and tuned via the DSP — it performs surprisingly well when driven and tuned properly.

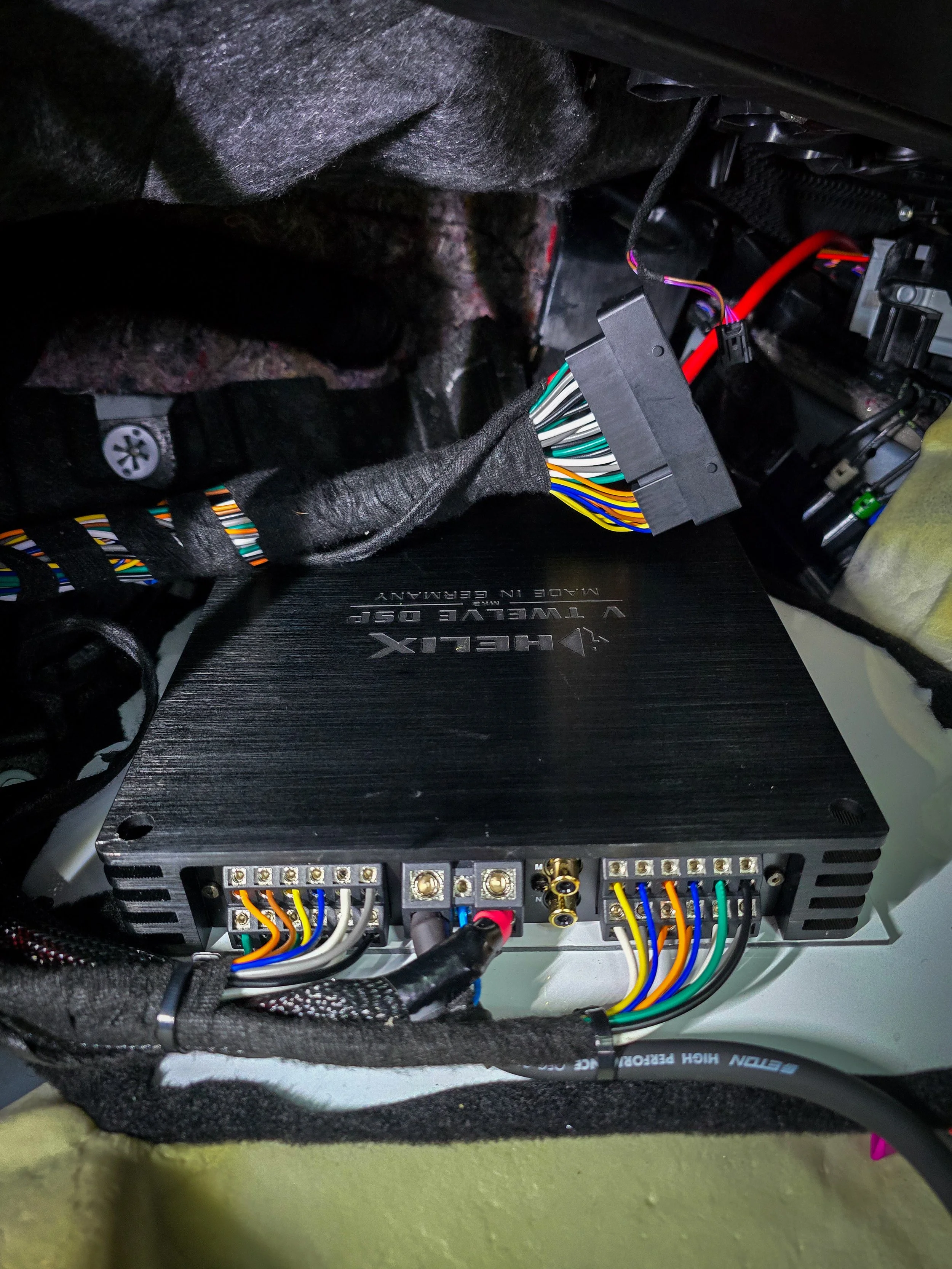

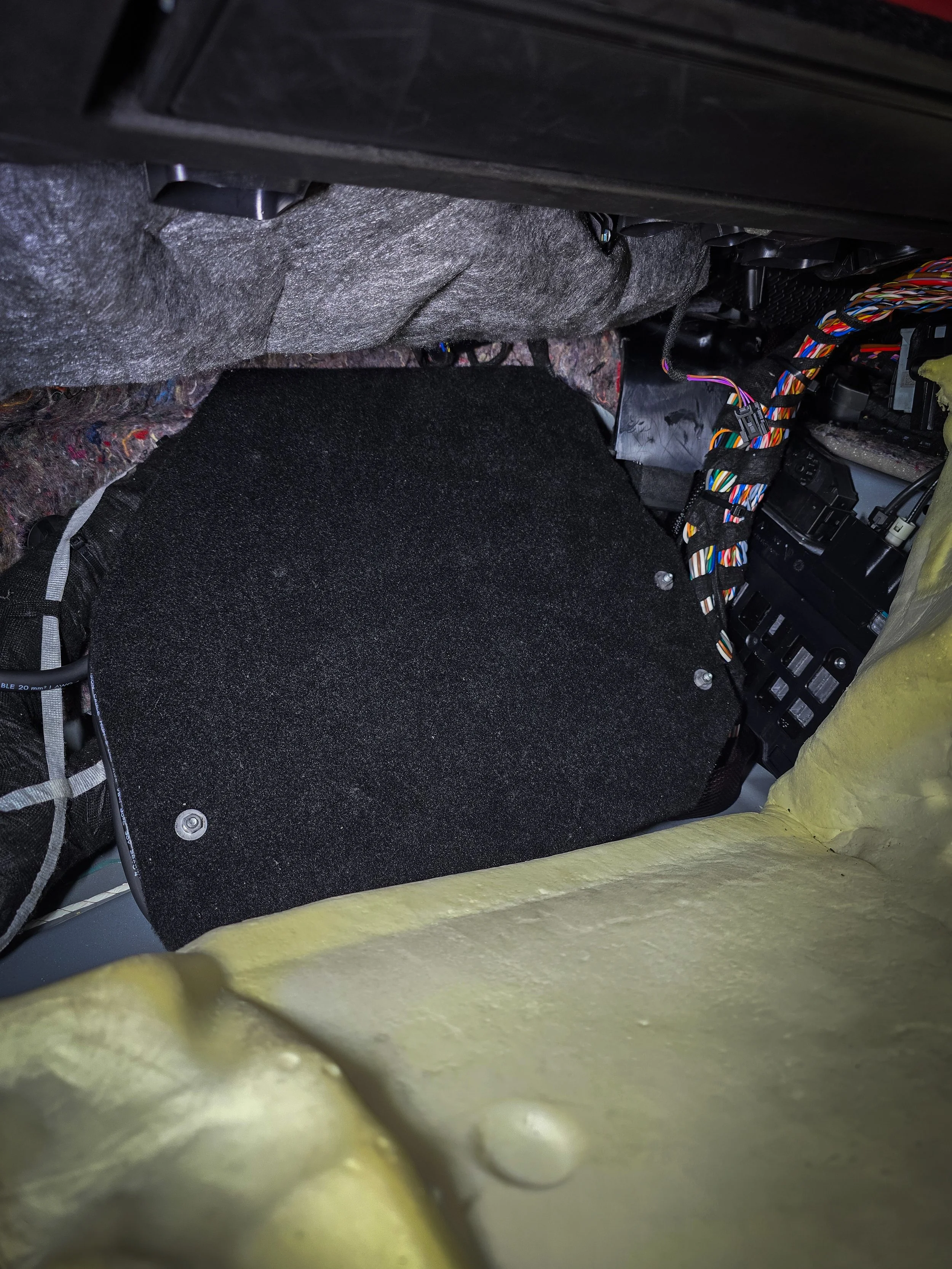

Power comes from the frunk via a spare 80A fused circuit at 13.5V — clean, factory-safe, no cutting required. The ground wire was taken from the large aluminium chassis bolt next to the glovebox. A custom amp rack was fabricated to replace the Bose unit in the boot, carpeted black to match the trim, and extended with a false floor to house the Helix V Twelve and conceal all wiring. Despite the tight clearance, everything fit without modifying the chassis. All power cabling was protected with heat shrink and braided sleeve throughout.

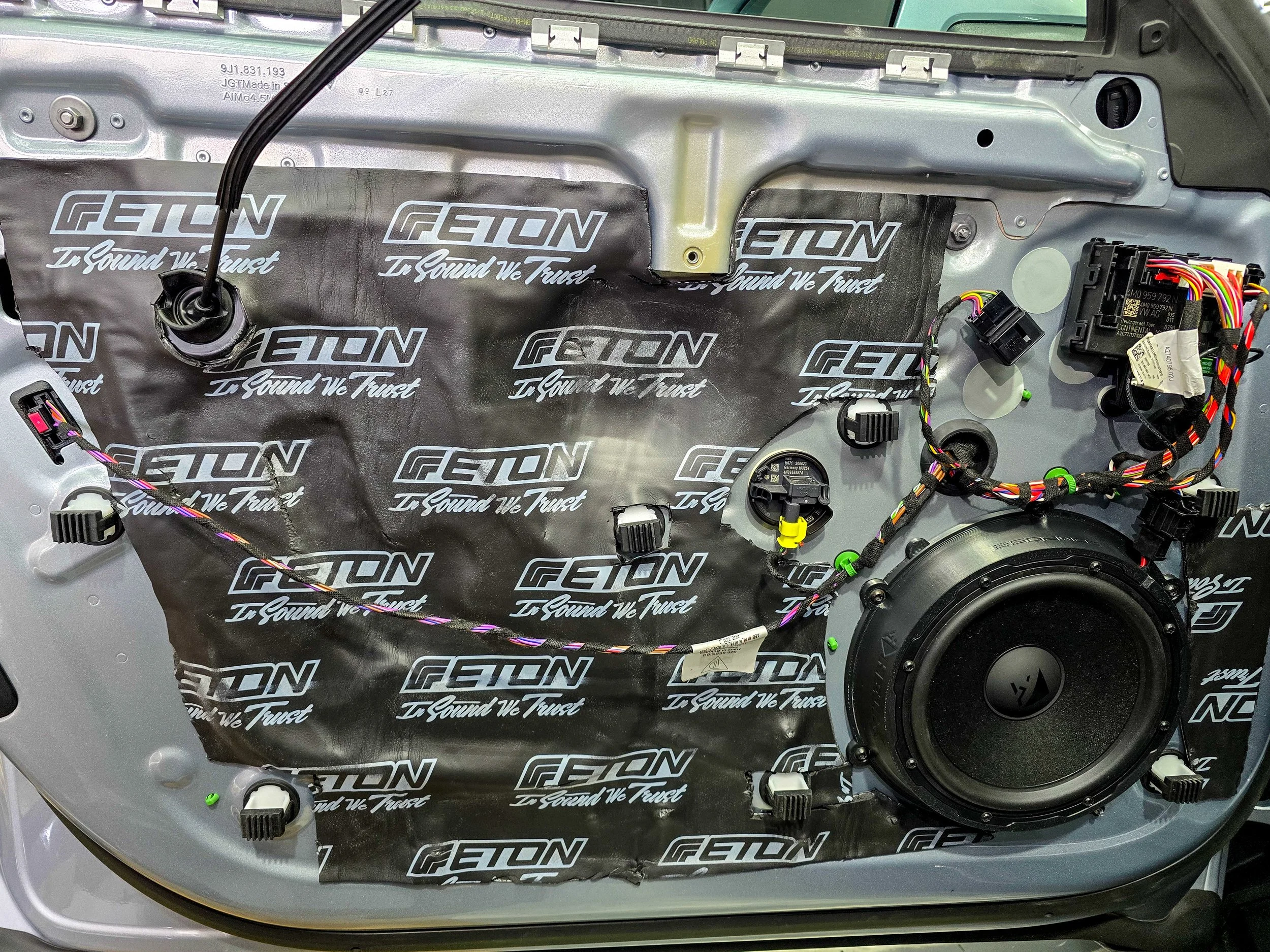

The doors had a resonance at around 360 Hz — a common issue in the midrange on this car. Dynamat Xtreme and Eton Noisekill was applied to the door skins to address it physically, with a targeted EQ cut at 360 Hz in the DSP to handle what the deadening alone couldn’t eliminate. The result is a clean midrange with no audible colouration at any volume.

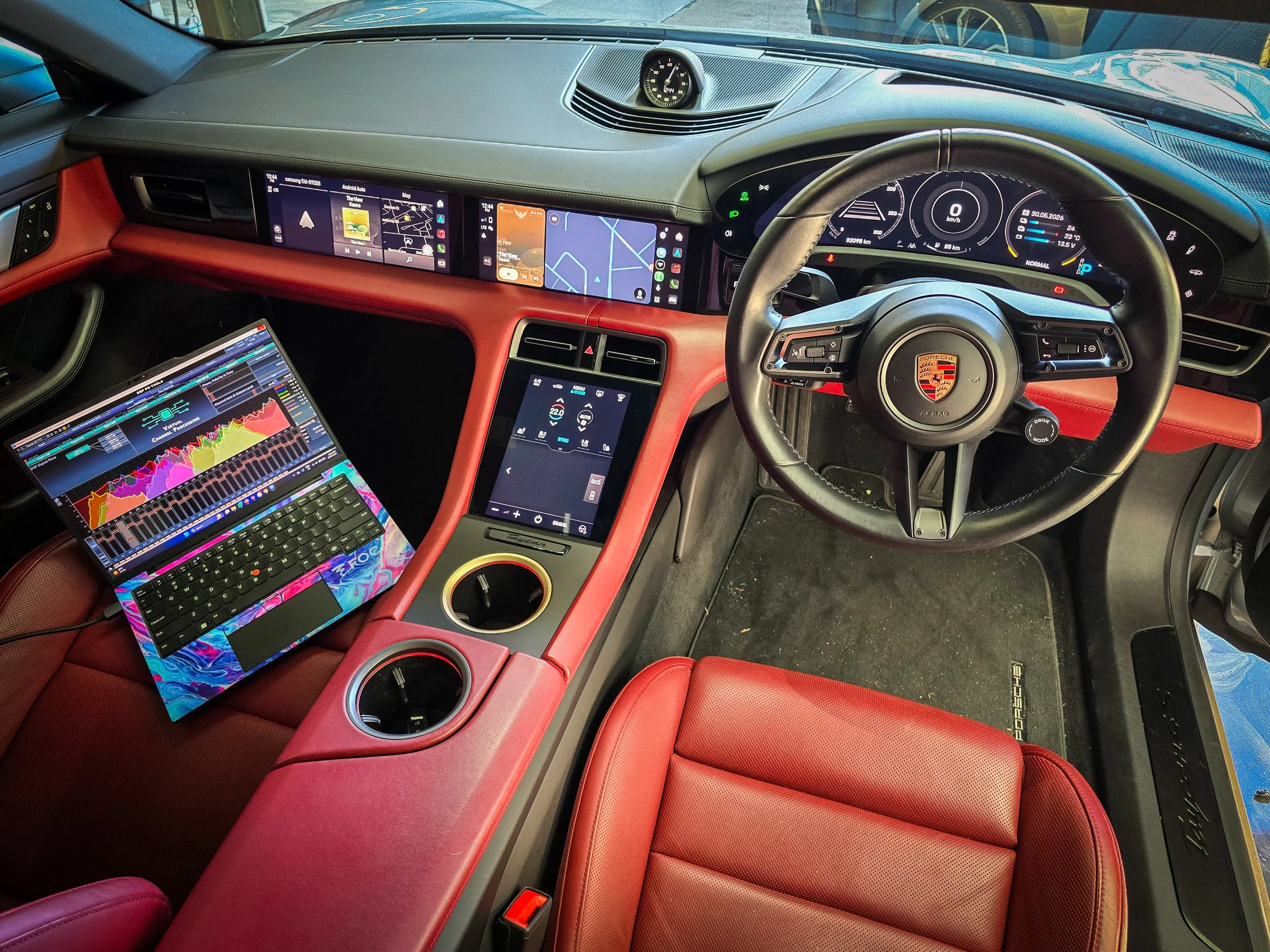

Tuning was done in stages: polarity confirmed acoustically on all 12 channels via correlated pink noise and cross-checked with a voice recording, time alignment set with both per-channel delay and virtual group delay on the left channels to compensate for the asymmetric dashboard, and gains adjusted to lock the centre image in place. EQ was handled with TuneToTarget for measurement-based correction and virtual channel tuning for the final musical result. Subwoofer phase was dialled in to place bass at the front of the car — no boom from the boot.

Everything looks factory from the outside. Nothing was cut, nothing is visible. The system is quiet at low volume, spacious at medium, and composed at high — no rattles, no compression, no fatigue.

Equipment:

• MoBridge DA-G2 — MOST150 digital signal converter (VAG/Porsche)

• Helix V Twelve DSP MK2 — 12-channel DSP amplifier

• Helix Ci7 — 3-way active front stage (tweeter, midrange, woofer)

• Dynamat Xtreme, Eton Noisekill — door acoustic treatment

• OEM Porsche subwoofer — retained and tuned via DSP
